ELECTRICALLY HEATED CIRCULATORS

The electrically heated circulators developed by Akana Engineering form a product family designed to meet different capacity requirements. Our products are supplied as ready-to-use units and are used in a wide range of applications and projects that require a temperature-controlled water supply.

Each circulator in the AKN-EHC series is supplied as a portable and ergonomic, complete, ready-to-use unit that becomes operational simply by connecting the water inlet and outlet.

In every model, available in different capacities to suit your project requirements, the user can control the water flow rate as well as the temperature. Control is possible directly on the equipment or via remote communication; by measuring the temperature of the incoming mains water or chiller water, the desired outlet water temperature is maintained automatically (± 2 °C).

Drawing on Akana Engineering’s experience in defence industry product and process development, our electrically heated circulator product family also uses durable materials together with software and hardware that ensure a high level of safety with a low margin of error. Our company’s quality control standards are applied throughout the entire manufacturing and integration process, and stainless steel materials are used for the tank and piping components to ensure a long service life.

You can review the specifications of our AKN-EHC series electrically heated circulators in the product family table below and contact us for quotation and purchasing requests. Our technical support team will be happy to answer any questions about our products or to develop solutions tailored to the hot water supply and heating requirements of your project.

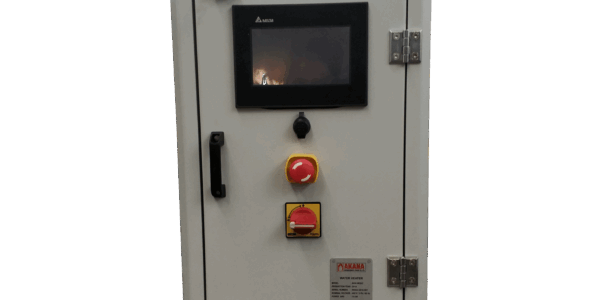

Isıtıcı (clean)
AKN-EHC-01AKN-EHC-02AKN-EHC-03AKN-EHC-04
SERIESAKN-EHC-01AKN-EHC-02AKN-EHC-03AKN-EHC-04
FLUIDWaterWaterWaterWater
TEMPERATUREUp to 90 °C (max. 2 °C offset)Up to 90 °C (max. 2 °C offset)Up to 90 °C (max. 2 °C offset)Up to 90 °C (max. 2 °C offset)
MAX. EXTERNAL VOLUME23 litres at 90 °C32.6 litres at 90 °C63 litres at 90 °C88.8 litres at 90 °C
HEATING CAPACITY7.5 kW15 kW30 kW40 kW / 60 kW
COOLING CAPACITY8 kW16 kW32 kW65 kW

MAX. FLOW RATE

(Heat Exchanger / primary)

40 l/min72 l/min140 l/min229.67 l/min

TOTAL PRESSURE DROP

(Heat Exchanger)

Primary system: 14.53 kPa

Secondary system: 1.06 kPa

Primary system: 8.95 kPa

Secondary system: 1.29 kPa

Primary system: 23.06 kPa

Secondary system: 2.84 kPa

Primary system: 8.6 kPa

Secondary system: 2.14 kPa

PUMP

Flow rate (max.): 40 l/min

Pressure (max.): 3.9 bar

Motor power: 0.37 kW

Suction: Ø DN 25

Flow rate (max.): 74 l/min

Pressure (max.): 4.4 bar

Motor power: 0.55 kW

Suction: Ø DN 25

Flow rate (max.): 142 l/min

Pressure (max.): 4.4 bar

Motor power: 1.1 kW

Suction: Ø DN 32

Flow rate (max.): 233.3 l/min

Pressure (max.): 7 bar

Motor power: 2.2 kW

Suction: Ø DN 40

DIMENSIONS1460 x 471 x 808 mm1648 x 491 x 856 mm1794 x 540 x 982 mm2406 x 630 x 1312 mm
COLOURRAL 7035 Light GreyRAL 7035 Light GreyRAL 7035 Light GreyRAL 7035 Light Grey
WEIGHT135 kg150 kg200 kg270 kg
CONNECTIONSCooling water inlet: hose nipple G ½”Cooling water inlet: hose nipple G ¾”Cooling water inlet: hose nipple G ¾”Cooling water inlet: hose nipple G 1”
Cooling water outlet: hose nipple G ½”Cooling water outlet: hose nipple G ¾”Cooling water outlet: hose nipple G ¾”Cooling water outlet: hose nipple G 1”
Process outlet: hose nipple G ¾”Process outlet: hose nipple G 1”Process outlet: hose nipple G 1”Process outlet: hose nipple G 1 ½”
Process return inlet: hose nipple G ¾”Process return inlet: hose nipple G 1”Process return inlet: hose nipple G 1”Process return inlet: hose nipple G 1 ½”
